Introduction

Tight tolerances are necessary when a custom part must fit, seal, rotate, slide, align or assemble accurately with another component. Bearing bores, shaft fits, sealing surfaces, locating holes and mating faces often require tighter dimensional control.

However, applying strict tolerances to every dimension does not always improve part quality. In many made-to-drawing manufacturing projects, unnecessary over-tolerancing increases cost, lead time and production risk without adding real functional value.

The relationship between tolerance and cost is usually not linear. As the tolerance band becomes smaller, production cost can rise sharply because several cost factors compound at the same time: slower machining, more stable fixtures, higher-precision processes, premium tools, more inspection and higher scrap control. Industry references commonly describe this as a steep or exponential cost curve, and some machining cost examples show that very tight tolerances may cost several times more than standard tolerance production, depending on geometry, material and inspection requirements. ^[1][2]

For custom parts, the best tolerance strategy is not to make every dimension as tight as possible. The goal is to keep strict tolerances on critical functional features and use general tolerances on non-critical dimensions wherever possible.

Key Point: Tight tolerances should protect real part function. If they are applied to non-critical areas, they become cost drivers rather than quality drivers.

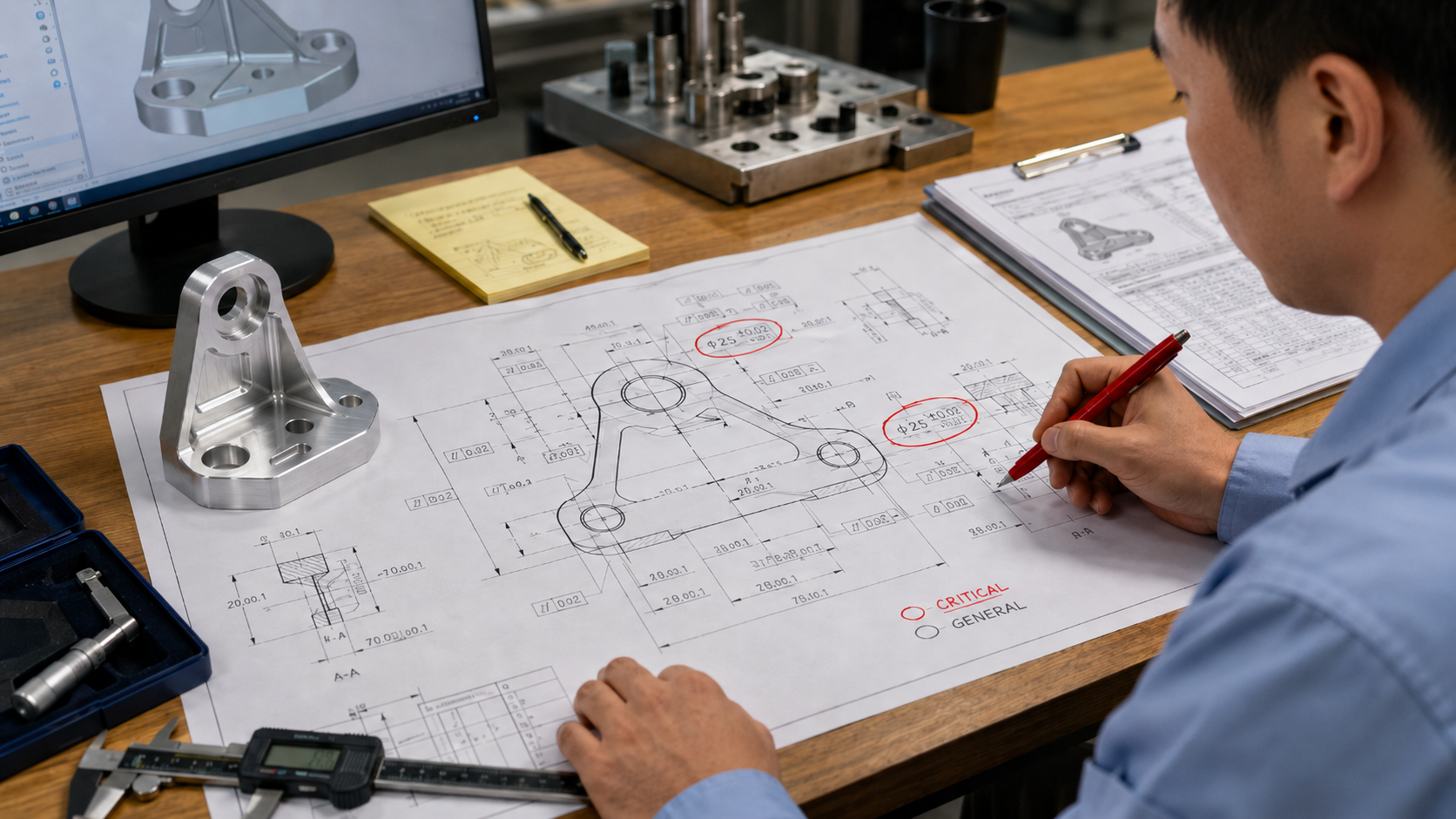

Problem: Over-Tolerancing on Custom Part Drawings

A common issue in RFQs is that drawings sometimes apply strict tolerances across the whole part, even when only a few features are function-critical.

When every dimension is tightly controlled, the manufacturer must treat the entire part as a precision component. This increases machining difficulty, inspection workload and quotation price, even if many dimensions do not affect actual product function.

Tight tolerance may be necessary for:	Tight tolerance may not be necessary for:
Bearing bores	Non-critical outer profiles
Shaft fits	Cosmetic edges
Sealing surfaces	Clearance holes
Assembly locating holes	Simple covers
Mating surfaces	Non-mating surfaces
Sliding or rotating features	General brackets
Critical flatness or perpendicularity areas	Support areas without precise assembly function

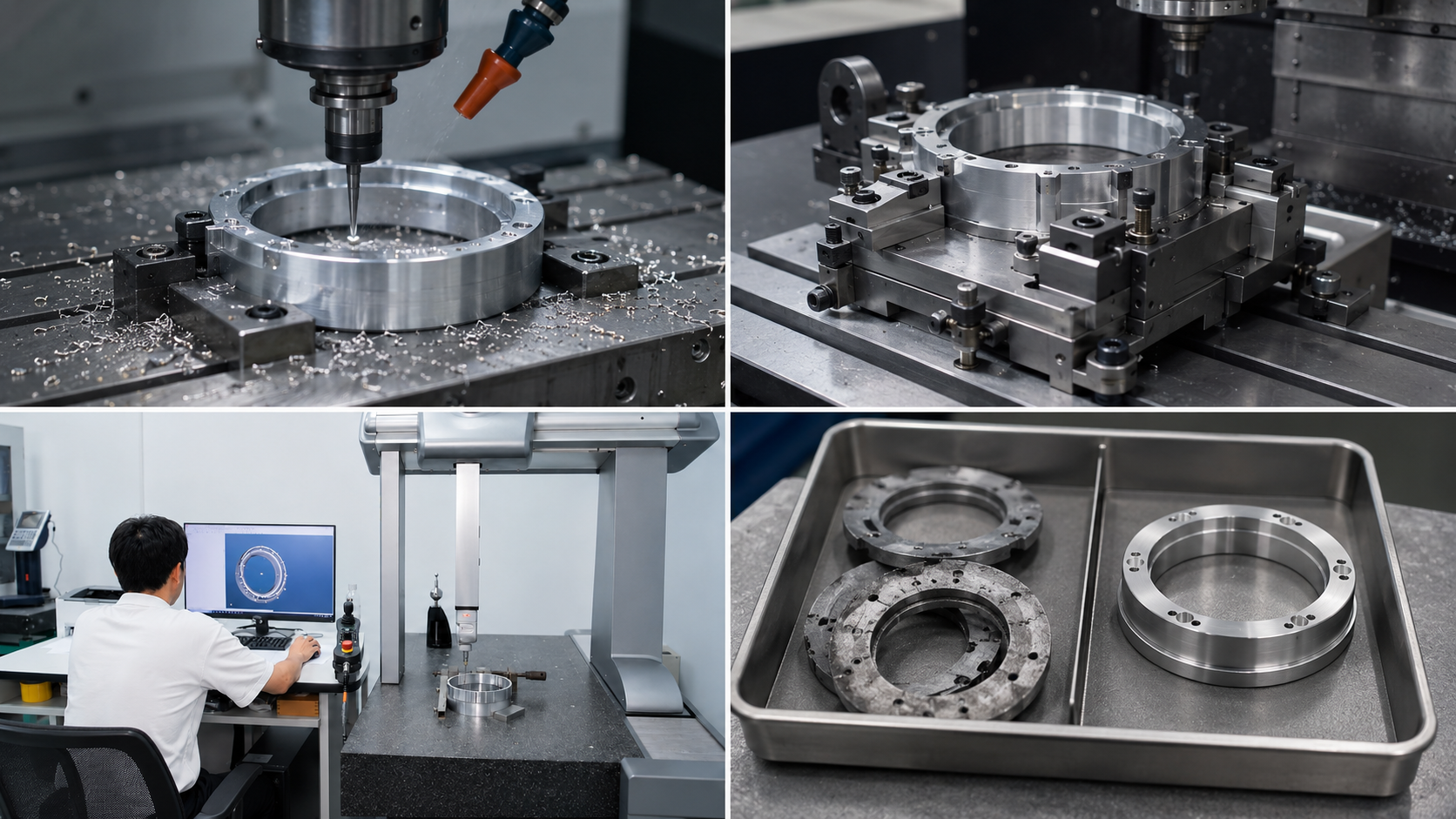

Core Cost Mechanism: Why Tighter Tolerances Raise Cost Nonlinearly

Tight tolerance cost increases are usually caused by multiple mechanisms happening together. A narrower tolerance window reduces process freedom, slows production and increases the cost of both manufacturing and verification.

Main Cost Drivers

1. Machining efficiency drops

To maintain a smaller error range, CNC machining often needs slower feed rates, lighter depths of cut, smaller stepovers and additional finishing passes. This extends cycle time and increases machine-hour cost. ^[3][4]

2. Yield and scrap risk become worse

When the acceptable range is narrow, small changes in temperature, vibration, clamping force, tool wear, material stress or surface finishing can push a feature out of specification. Rework and scrap raise the average cost per accepted part.

3. Process and equipment requirements increase

If normal machining cannot meet the required tolerance, secondary processes such as grinding, honing, lapping, EDM or precision reaming may be needed. These processes add setup time, higher equipment cost and longer lead time. ^[5]

4. Inspection cost rises sharply

Tight tolerance parts often require CMM inspection, special gauges, more in-process checks or even 100% inspection. Inspection time and metrology skill requirements become part of the manufacturing cost. ^[3][6]

5. Tool wear and tool management become more critical

Precision cutting requires stable, sharp and higher-quality tools. Slower finishing, harder materials and tighter surface requirements may cause more frequent tool changes and additional tool cost.



Cost Reference: From Standard Tolerance to Precision Tolerance

A useful way to explain tolerance cost is to compare a standard tolerance such as +/-0.1 mm with a precision tolerance such as +/-0.01 mm. This is not a small adjustment: it reduces the allowed variation by 10 times.

In practice, cost may increase by more than 2 times when the tolerance level moves from general machining to precision machining, especially if the feature requires slower finishing, better fixturing and more detailed inspection. If the required tolerance exceeds the stable capability of the current process, cost can jump suddenly because the manufacturing route must change to grinding, EDM, honing or another precision process. ^[2][5]

The exact cost increase depends on part size, geometry, material, batch quantity, surface treatment, inspection requirement and supplier process capability. This is why DFM tolerance review before quotation is important.

Tolerance Level	Example Range	Typical Requirement	Cost Impact
Standard tolerance	+/-0.1 mm or general tolerance note	Non-critical profiles, covers, brackets, clearance features	Lower machining and inspection cost
Precision tolerance	+/-0.03 to +/-0.01 mm	Mating surfaces, key holes, locating features, bearing or shaft fits	Higher cycle time, more inspection and tighter process control
Ultra-precision / special process	Below common process capability	High-accuracy instrument features, special sealing or motion components	Potential cost jump due to grinding, EDM, honing or special metrology



DFM Review Points: What We Check Before Quotation

Before quoting a custom part, tolerance review helps identify where precision is truly needed and where standard tolerances are more cost-effective. At Xu Feng, we usually check the following points:

DFM Review Focus

Critical functional dimensions

Dimensions related to fit, sealing, rotation, positioning, alignment, assembly or movement.

General vs critical tolerances

Whether strict tolerances are applied only to key functional features, or whether the whole drawing is over-toleranced.

Machining access and setup risk

Whether the tight tolerance is located on a surface that is difficult to clamp, machine or inspect.

Material and part structure

Thin-wall parts, long parts, soft plastics, stainless steel, deep cavities and heavy material removal may make tight tolerance control more difficult.

Surface finish and post-processing impact

Anodizing, plating, powder coating, polishing, passivation or heat treatment may affect final dimensions.

Inspection method

Whether the tolerance can be measured reliably, and whether CMM inspection, special gauges or inspection reports are required.

Practical Suggestions: How to Reduce Cost Without Losing Function

Tolerance Optimization Actions

1. Apply tight tolerances only to critical features

Use strict tolerances for features that directly affect fit, sealing, alignment, bearing function, sliding movement or assembly. For non-critical dimensions, standard machining tolerances are usually more cost-effective.

2. Mark critical dimensions clearly on the 2D drawing

A 3D model defines geometry, but a 2D drawing is still important for tolerance, threads, surface finish, material, inspection and special notes.

3. Separate functional requirements from cosmetic requirements

A visible surface may need good appearance, but it does not always need tight dimensional tolerance.

4. Use general tolerance notes for non-critical features

For ordinary profiles, covers, brackets or clearance features, a general tolerance note such as ISO 2768 can reduce unnecessary tolerance callouts and simplify quotation. ^[7]

5. Explain the part function when requesting a quote

If the supplier understands how the part is used, it is easier to identify which dimensions must remain tight and which can be relaxed.

6. Review surface treatment impact early

If the part requires anodizing, plating, coating, polishing or heat treatment, confirm whether critical holes, threads, bores or mating surfaces need protection.

7. Confirm inspection requirements before production

CMM report, FAI report, material certificate, COC and special inspection records should be confirmed at the quotation stage because they affect both cost and lead time.

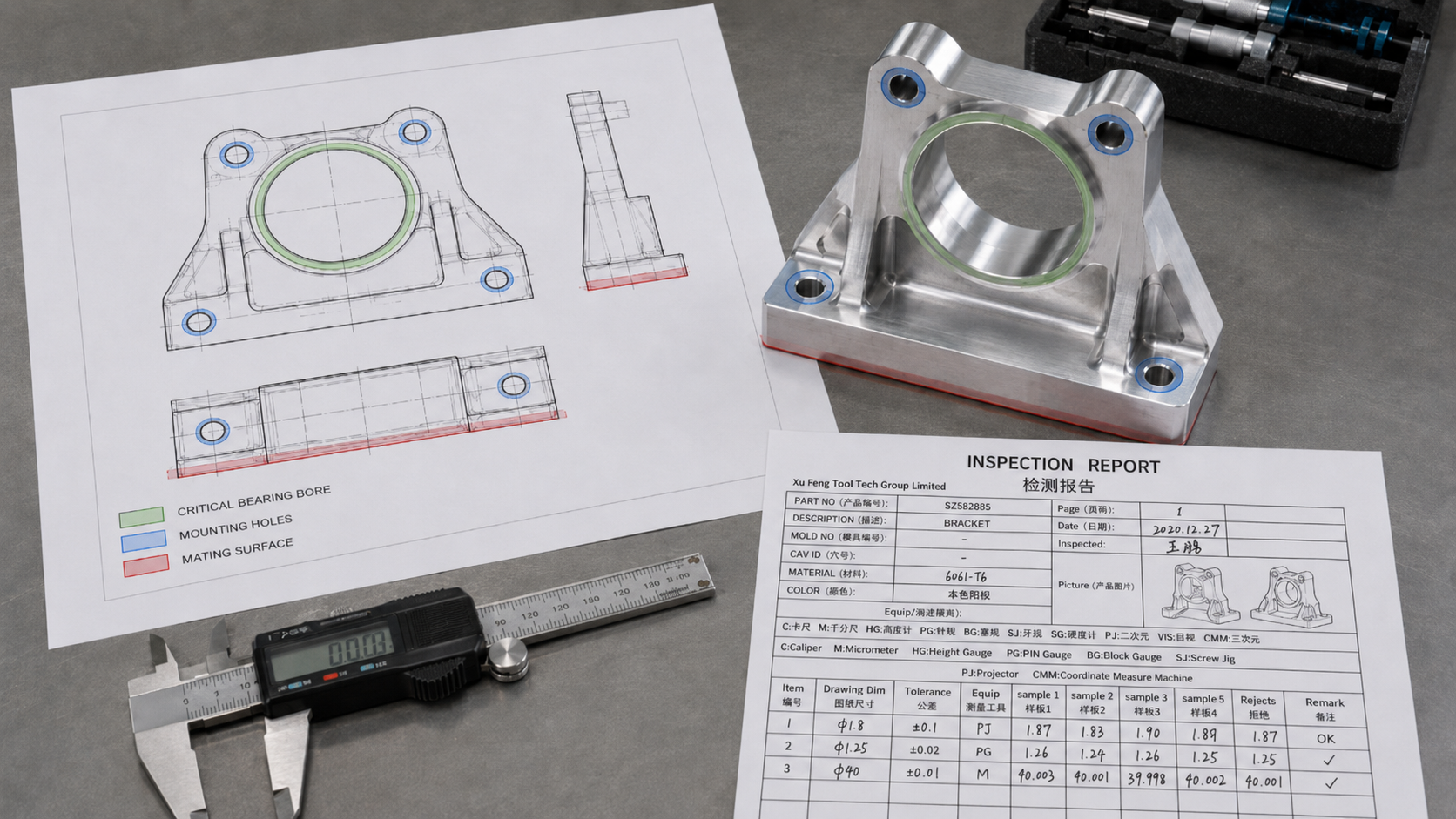

Example: Same Part, Different Tolerance Strategy

A CNC aluminum bracket may include mounting holes, a bearing bore, a flat mating surface and several non-critical outer edges.

If the entire drawing is marked with tight tolerance, the part may require slower machining, more careful fixturing, full dimensional inspection and higher scrap control.

A better strategy is to keep tight tolerance only where function requires it:

• Keep tight tolerance on the bearing bore.
• Keep position tolerance on key mounting holes.
• Keep flatness requirement only on the mating surface.
• Use general tolerance for non-critical outer profiles.
• Define cosmetic requirements separately from dimensional tolerance.
• Confirm inspection method for critical features only.

This approach maintains part function while reducing unnecessary machining time, inspection workload and cost.

When to Ask Your Supplier for Tolerance Review

You should ask for DFM tolerance review when:

• The part has many tight tolerance callouts.
• The part has bearing bores, sealing surfaces or shaft fits.
• The part requires multiple machining setups.
• The part has thin walls, deep cavities or long unsupported features.
• The part needs anodizing, plating, coating or polishing.
• The part is assembled with other components.
• The prototype price is much higher than expected.
• You are preparing for small-batch or repeat production.
• You are not sure which dimensions are truly function-critical.

A short tolerance review before quotation can help reduce cost, improve manufacturability and avoid production risk.

Summary Checklist: Cost-Saving Tolerance Review

Check Item	Recommended Action
Critical dimensions	Mark tight tolerance only where fit, sealing, alignment or movement requires it.
Non-critical dimensions	Use general tolerance to avoid unnecessary inspection and machining cost.
Process capability	Confirm whether the required tolerance is within stable machining capability.
Post-processing	Review plating, coating, anodizing or heat treatment impact on final size.
Inspection	Confirm CMM, FAI or special gauges before production.
Supplier review	Request DFM feedback before quotation if the drawing has many strict tolerance callouts.



Conclusion

Tight tolerances are valuable when they protect real part function. But when strict tolerances are applied to non-critical dimensions, they can increase machining time, fixture requirements, tooling cost, inspection workload, scrap risk and lead time.

For custom parts made to drawings, the most cost-effective approach is to control precision where it matters most and use standard tolerances elsewhere.

At Xu Feng, we provide drawing-based DFM feedback before production to help overseas buyers review tolerance risks, identify cost drivers and define practical inspection requirements.

CTA: Upload Your Drawing for Free DFM Analysis Our team will review your tolerance requirements, manufacturing risks and possible cost-saving opportunities before quotation.
